Machine Art Mark 2 Light Bars – R1250R / R1250RS / R1200R / R1200RS LC Models

MachineArt Light Bars (light brackets) enable the fitting of LED driving lights, either those from BMW or aftermarket brands such as Denali.

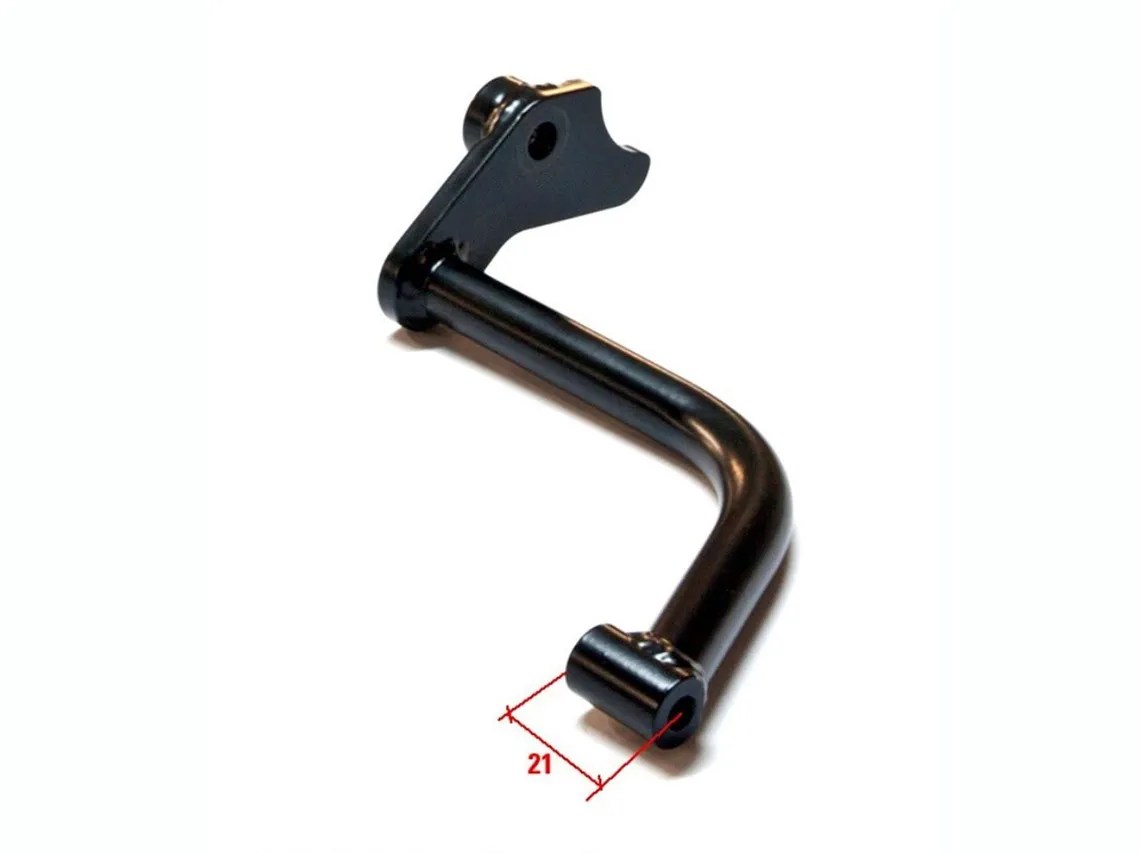

The MachineArt Light Bars are individual left and right sided finished in satin black powder coated steel and mount in the same location as the BMW light bar. They enable the benefit of improved LED driving light illumination.

Compatible with BMW crash bars

Also compatible with SW Motech crash bars

Fits:

R1200R LC

R1200RS LC

R1250R LC

R1250RS LC

FITTING DENALI LIGHTS

These brackets are designed for BMW lights – here is how to fit Denali lights:

Denali light bracket is differently configured than those of BMW, so Denali can be mounted mount as follows:

Remove the Denali U-shaped bracket. Then, align the light mounting hole with the outboard end of the mount on the Light Bar and fasten the two with an M8 bolt 50 to 55mm in length. Locktite should be applied to the bolt threads.
